Description

The CompositeZ™ 100 is a light to moderate-duty fiber reinforced polymer (FRP) or composite sheet pile section that is ideal for bulkhead/seawall applications where corrosion resistance is of concern.  The CompositeZ™ 100 has higher strength and stiffness than comparable vinyl sections, is lightweight and easy to handle and install.





GENERAL INFORMATION

Constituent Materials

E-glass continuous fiber rovings and stitched fabrics

with a polyester resin matrix

Manufacturing Method

Pultrusion

Color

Gray or brown

UV Resistance

Provided with UV inhibitors and pigments

Range of Movement

Between Interlocked Sheets

± 5º



Specification

Z-100

SPW 911 Variable Designation

Shape

Z-100



Modulus of Elasticity

2.8 x 106 psi

E

Moment of Inertia per Unit Length of Wall

37.15 in4/ft

I

Section Modulus per Unit Length of Wall

10.25 in3/ft

Z

Working Stress

12,500 psi

f

Allowable Bending Moment per Unit Length of Wall

10,664 ft-lbs/ft of wall

BM

Sheet Cross-Sectional Area per Unit Length

4.03 in2/ft

A

Sheet Weight per section per Unit Length of Sheeting

4.75 lbs/ft

W

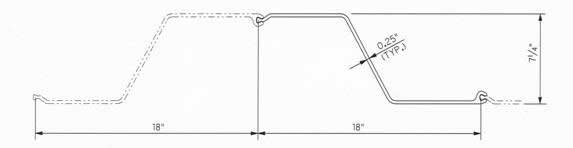

Width of Sheeting Section

18”

B

Thickness

.250”

-

Weight (per ln ft)

4.54 lbs/ft

-

*Apparent modulus of elasticity is based on the measured deflection of two interlocked sheets piles loaded in flexure. The apparent modulus of elasticity includes shear deformations and should be appropriate for most bulkhead applications. For walls with multiple wales, the shear deformations should be checked.
