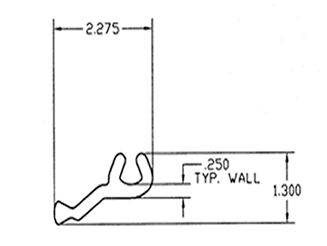

| CORNER CONFIGURATION 90° Corner
|
 |
| Composite Z corners are generally installed with the last “Z” sheet to be driven. e.g. The corner is hand threaded into the “Z” shape prior to setting the last “Z” shape in a wall prior to making a 90? turn or return wall. After setting this final shape combined with the 90? corner, the corner and the “Z” are driven simultaneously. | |
Caps
|
|
 |
 |
| All permanent sheet pile walls need to be capped when
installation is complete. Although this can be done with wood or concrete
caps, we normally recommend the use of a pultruded channel cap. This
piece is 8" x 2 3/16" x 1/4" and is customized to fit

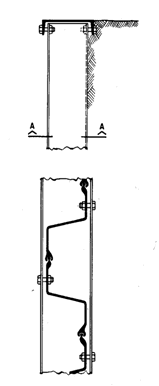

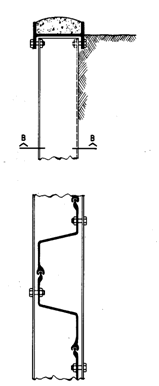

the sheeting profile. A drawing for this is shown below. |
|
